Exhaust emissions categoryEU Stage 5/US EPA Tier 4f (Emission values classified by standard, e.g. EPA, EU, etc.)
Operating weight, CE38,360 lbs (Weight of machine, half of the weight of all operating agents, on-board tools, machine operator, no optional equipment features)
Max. mold width13 ft 1 in (Please consult factory for different offset geometries or special applications)
Exhaust emissions categoryEU Stage 5/US EPA Tier 4f (Emission values classified by standard, e.g. EPA, EU, etc.)
Operating weight, CE38,360 lbs (Weight of machine, half of the weight of all operating agents, on-board tools, machine operator, no optional equipment features)
Max. mold width13 ft 1 in (Please consult factory for different offset geometries or special applications)
Max. mold height9 ft 10 in (Please consult factory for different offset geometries or special applications)
Rated power180 kW / 241 hp

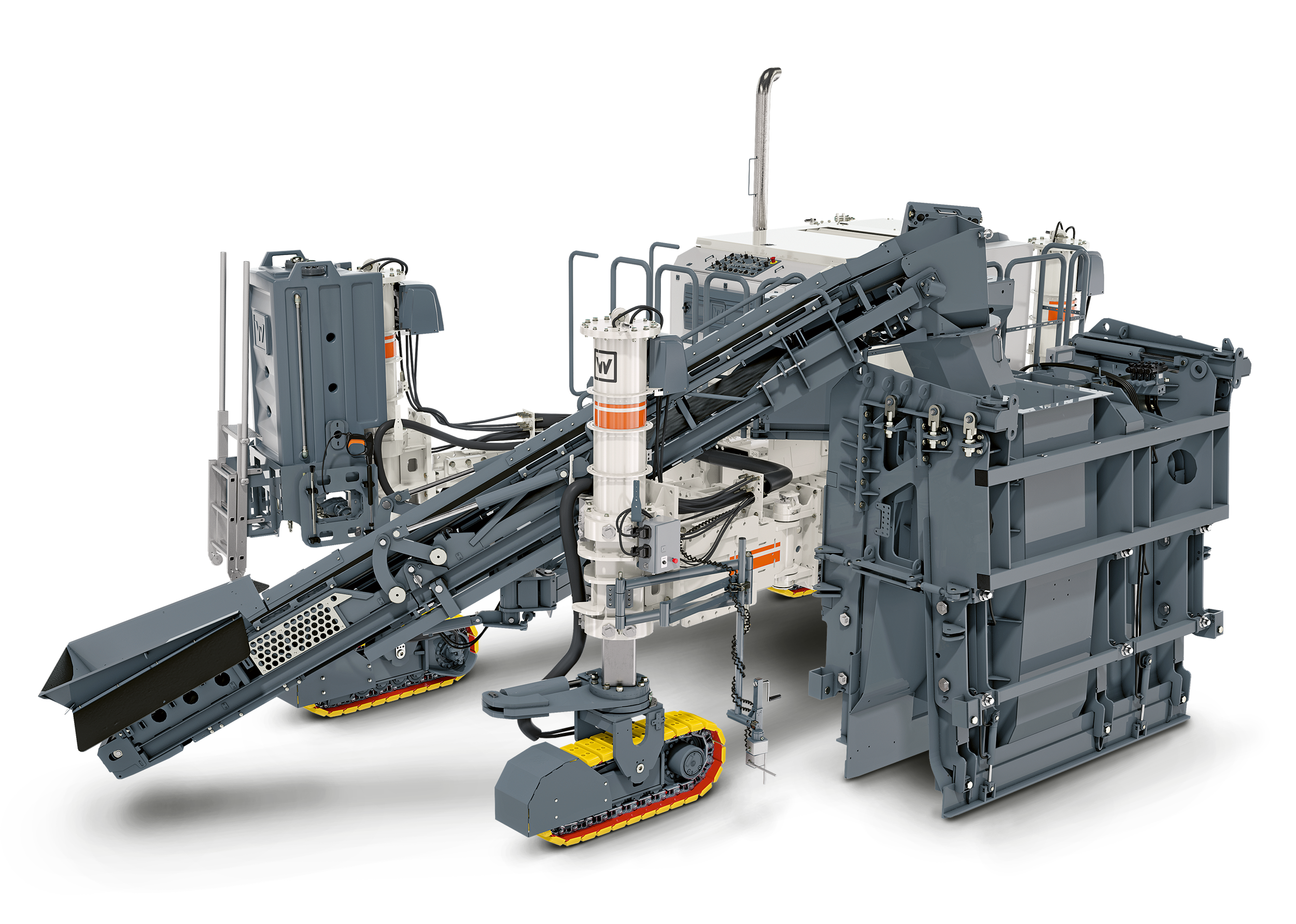

USP TexteThe flexible slipform paver is suitable for paving a wide variety of monolithic profiles up to 9 ft 10 in high.WIRTGEN’s offset molds are custom-built to customer specifications and are available in a variety of profile shapes.Concrete surfaces up to 13 ft 1 in paving width can be easily paved using the offset method.Special slipforms make the construction of concrete safety barriers with variable paving heights possible – for example from 3 ft 3 in to 9 ft 10 in.The fully modular machine design and simple changeover and expansion options guarantee that the machine can be easily adapted to any job site situation.
